Multi-Agent Orchestration Patterns: How to Coordinate 3+ AI Agents in Production

Why Orchestration Patterns Matter

A single LLM call is a function. Two agents passing messages is a protocol. Three or more agents coordinating toward a goal is a distributed system — and distributed systems fail in ways that single agents never do: partial failures, stale state, ordering bugs, and deadlock.

The good news: multi-agent systems don’t need new CS. The orchestration patterns that work for microservices, actor systems, and workflow engines work here too — you just have to pick the right one for your problem. Picking wrong means latency you can’t meet, cost you can’t afford, or race conditions you can’t reproduce.

This guide covers the five patterns that show up repeatedly in production agent systems, when to use each, what CrewAI, LangGraph, and AutoGen give you, and the failure modes to watch for.

Pattern 1: Sequential (Pipeline)

When to use it

• Each step has a hard dependency on the output of the previous step.
• You can tolerate the cumulative latency (N agents ≈ N round trips).
• You want the simplest system that could possibly work — sequential is the baseline every other pattern deviates from.

Real-world example

A content-production pipeline: a researcher gathers sources, a writer drafts the article, and an editor revises it. You cannot parallelize — the writer needs the researcher’s sources; the editor needs the writer’s draft.

from crewai import Agent, Task, Crew, Process

researcher = Agent(
    role="Research Analyst",
    goal="Find 5 authoritative sources on {topic}",
    backstory="Meticulous, citation-focused.",
)
writer = Agent(
    role="Technical Writer",
    goal="Draft a 1500-word article from the research",
    backstory="Clear, concrete, no filler.",
)
editor = Agent(
    role="Senior Editor",
    goal="Revise the draft for clarity and accuracy",
    backstory="Ruthless line-editor.",
)

research_task = Task(description="Research {topic}", agent=researcher)
write_task    = Task(description="Write the article", agent=writer,
                     context=[research_task])  # depends on research
edit_task     = Task(description="Edit the draft", agent=editor,
                     context=[write_task])     # depends on writer

crew = Crew(
    agents=[researcher, writer, editor],
    tasks=[research_task, write_task, edit_task],
    process=Process.sequential,  # <-- the pattern
)
result = crew.kickoff(inputs={"topic": "multi-agent orchestration"})

Failure modes

• Cumulative latency: if each agent takes 30s, 5 agents = 2.5 minutes best case.
• Error propagation: a bad output at step 2 corrupts steps 3 through N. Validate between stages.
• No partial progress: if step 4 fails, you’ve already paid for 1–3. Checkpoint outputs to disk.

Pattern 2: Parallel (Fan-Out / Fan-In)

When to use it

• The problem decomposes into independent subtasks (no cross-subtask dependencies).
• Latency matters — you need wall-clock time close to the slowest worker, not the sum.
• You’re willing to spend more on tokens for a faster result.

Real-world example

Competitive research: analyze 10 competitors simultaneously. Each worker agent handles one competitor; the aggregator produces a comparison matrix. Sequential would take 10x longer for no correctness benefit.

from langgraph.graph import StateGraph, END
from typing import TypedDict, Annotated
import operator

class State(TypedDict):
    competitors: list[str]
    # Reducer: list concatenation across parallel branches
    analyses: Annotated[list[dict], operator.add]
    report: str

def dispatch(state): return state  # pass-through

def analyze_competitor(state, competitor: str):
    # Each branch runs one agent analysis
    return {"analyses": [{"competitor": competitor, "summary": run_agent(competitor)}]}

def aggregate(state):
    report = build_comparison_matrix(state["analyses"])
    return {"report": report}

graph = StateGraph(State)
graph.add_node("dispatch", dispatch)
graph.add_node("aggregate", aggregate)

# Conditional fan-out: one branch per competitor
def fan_out(state):
    return [("analyze", c) for c in state["competitors"]]

graph.add_conditional_edges("dispatch", fan_out)
for i in range(10):  # pre-register worker nodes
    graph.add_node(f"analyze_{i}", lambda s, i=i:
                   analyze_competitor(s, s["competitors"][i]))
    graph.add_edge(f"analyze_{i}", "aggregate")

graph.set_entry_point("dispatch")
graph.add_edge("aggregate", END)
app = graph.compile()

Failure modes

• Straggler problem: one slow worker blocks aggregation. Use a deadline; if a worker misses it, aggregate without it.
• Cost blow-up: fan-out N-way multiplies token spend by N. Cap concurrency.
• Rate-limit storms: 50 workers hitting the same LLM provider = 429s. Add a rate-limit queue in front of the provider.

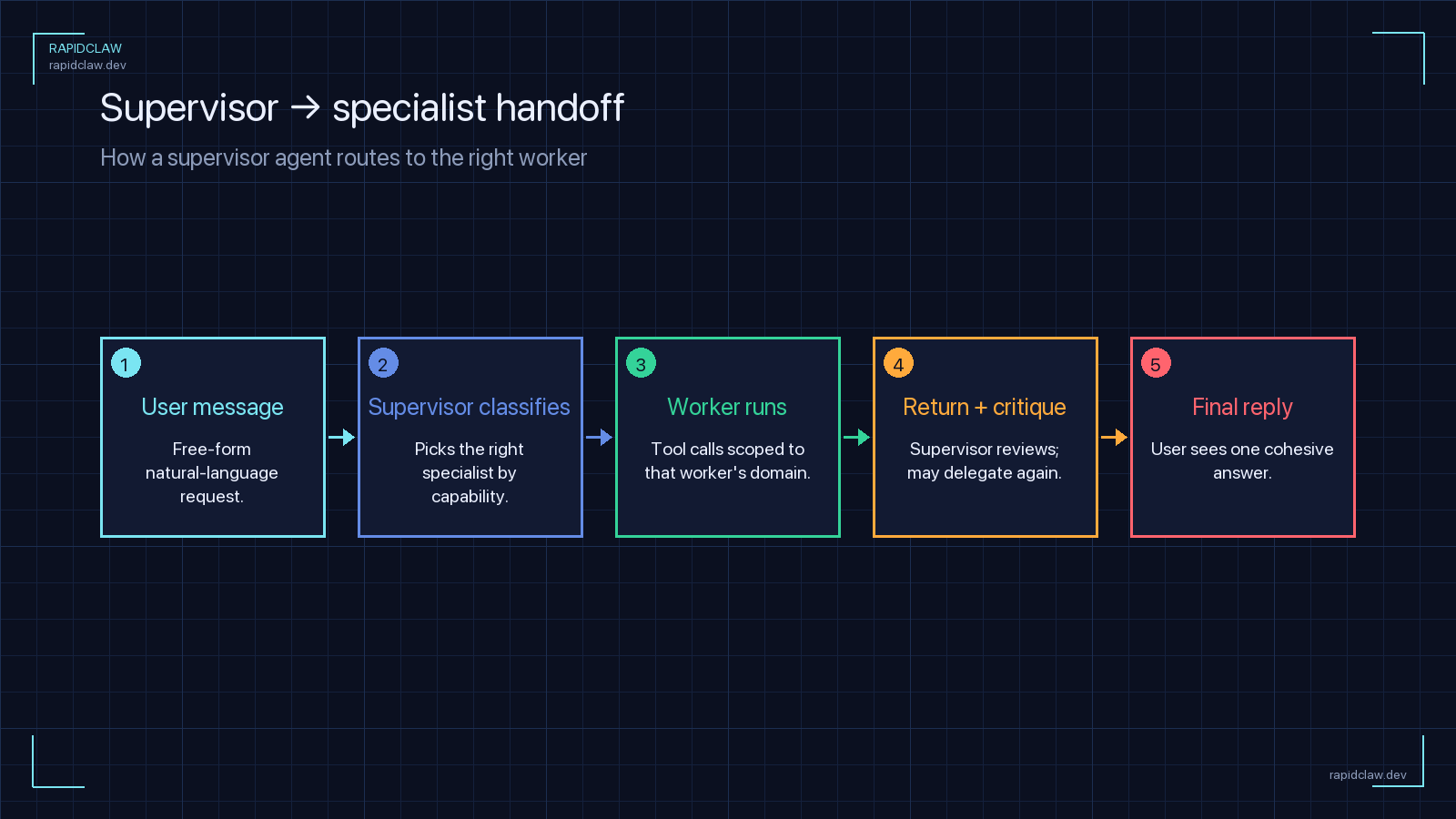

Pattern 3: Hierarchical (Manager + Workers)

When to use it

• The task requires dynamic planning — you can’t hard-code the sequence of steps ahead of time.
• Workers are specialists (one for code, one for data, one for writing), and the manager needs to route subtasks by capability.
• You need the manager to verify worker output and re-assign if quality is poor.

Real-world example

A software-engineering assistant: the manager reads a feature request, decides what’s needed (code + tests + docs), delegates each to a specialist agent, reviews the results, and loops back if anything fails a review. This is how Devin, OpenHands, and similar coding agents are structured.

from autogen import ConversableAgent, GroupChat, GroupChatManager

coder = ConversableAgent(
    name="coder",
    system_message="You write production Python. Return only code blocks.",
    llm_config={"model": "claude-opus-4-7"},
)
tester = ConversableAgent(
    name="tester",
    system_message="You write pytest tests. Return only code blocks.",
    llm_config={"model": "claude-sonnet-4-6"},
)
doc_writer = ConversableAgent(
    name="doc_writer",
    system_message="You write concise API docs in Markdown.",
    llm_config={"model": "claude-sonnet-4-6"},
)

manager_agent = ConversableAgent(
    name="manager",
    system_message=(
        "You are a tech lead. Decompose the feature into code, tests, and docs. "
        "Delegate to coder/tester/doc_writer. Review each output and reject "
        "anything that's not production-quality."
    ),
    llm_config={"model": "claude-opus-4-7"},
)

group = GroupChat(
    agents=[manager_agent, coder, tester, doc_writer],
    messages=[],
    max_round=20,
    speaker_selection_method="auto",  # manager decides who speaks next
)
chat_manager = GroupChatManager(groupchat=group,
                                llm_config={"model": "claude-opus-4-7"})

manager_agent.initiate_chat(
    chat_manager,
    message="Add a rate-limit decorator to our Python SDK.",
)

Failure modes

• Infinite review loops: the manager rejects outputs indefinitely. Hard-cap rounds and fall back to “good enough.”
• Token spend: manager reads every worker’s full output. Summarize worker responses before feeding them back.
• Manager hallucinates capabilities: delegates to a worker that can’t actually do the task. Give the manager a structured tool schema of what each worker offers, not a free-text description.

Pattern 4: Pub-Sub (Event-Driven)

When to use it

• You have many agents with many-to-many relationships, and hard-coding the graph is brittle.
• New agents need to be added or removed without rewiring existing agents.
• You want durable event logs for replay, audit, or debugging.

Real-world example

A customer-support system: when a ticket arrives, a classifier publishes a ticket.classified event. A billing-agent, tech-support-agent, and escalation-agent each subscribe with filters. Only the relevant one reacts. Adding a new agent type = adding a new subscriber; no existing code changes.

# Redis Streams as the event backbone — works with any framework
import redis, json, asyncio

r = redis.asyncio.Redis()

async def publish(topic: str, event: dict):
    await r.xadd(topic, {"payload": json.dumps(event)})

async def subscribe(topic: str, group: str, consumer: str, handler):
    await r.xgroup_create(topic, group, id="0", mkstream=True)
    while True:
        msgs = await r.xreadgroup(group, consumer, {topic: ">"},
                                  count=10, block=5000)
        for _, entries in msgs or []:
            for msg_id, fields in entries:
                event = json.loads(fields[b"payload"])
                try:
                    await handler(event)
                    await r.xack(topic, group, msg_id)
                except Exception as e:
                    # Retry up to N times, then dead-letter
                    log_error(msg_id, e)

# Classifier agent publishes
async def classifier_agent(ticket):
    category = await llm_classify(ticket)
    await publish("ticket.classified",
                  {"ticket_id": ticket.id, "category": category})

# Billing agent subscribes — only acts on billing tickets
async def billing_handler(event):
    if event["category"] != "billing":
        return
    await llm_handle_billing(event["ticket_id"])

asyncio.gather(
    subscribe("ticket.classified", "billing-group", "billing-1", billing_handler),
    subscribe("ticket.classified", "tech-group", "tech-1", tech_handler),
    subscribe("ticket.classified", "esc-group", "esc-1", escalation_handler),
)

Failure modes

• Event storms: one agent’s event triggers another’s, which triggers three more, which triggers twelve. Add a trace ID and cap event chain depth.
• Observability collapse: without distributed tracing you cannot debug anything. Propagate a correlation ID through every event.
• Eventual consistency: an agent may react to a stale event. Include a version in the event and have subscribers ignore versions older than their last processed state.

Pattern 5: Blackboard (Shared Memory)

When to use it

• The problem is open-ended and you don’t know in advance which agents should contribute or in what order.
• Each agent can read the full context but only a subset can meaningfully add to it at any point.
• You’re doing emergent problem-solving — planning, hypothesis generation, creative synthesis.

Real-world example

Medical differential diagnosis: a shared board holds patient symptoms, test results, and current hypotheses. A symptom-reasoner, imaging-interpreter, lab-interpreter, and literature-searcher each watch the board. When new info arrives, whichever agent has something relevant to add contributes. No pre-defined order.

from dataclasses import dataclass, field
from typing import Callable

@dataclass
class Blackboard:
    state: dict = field(default_factory=dict)
    history: list = field(default_factory=list)

    def read(self) -> dict:
        return dict(self.state)

    def write(self, agent: str, key: str, value):
        self.state[key] = value
        self.history.append({"agent": agent, "key": key, "value": value})

@dataclass
class KnowledgeSource:
    name: str
    precondition: Callable[[dict], bool]  # when is this agent applicable?
    action: Callable[[dict], dict]        # what does it contribute?

class Controller:
    def __init__(self, bb: Blackboard, sources: list[KnowledgeSource]):
        self.bb = bb
        self.sources = sources

    def step(self) -> bool:
        # Find all agents whose precondition matches current state
        applicable = [s for s in self.sources if s.precondition(self.bb.read())]
        if not applicable:
            return False  # done — no one has anything to add

        # Pick the highest-priority applicable agent (custom scoring)
        chosen = max(applicable, key=lambda s: priority(s, self.bb.read()))
        contribution = chosen.action(self.bb.read())
        for k, v in contribution.items():
            self.bb.write(chosen.name, k, v)
        return True

    def run(self, max_steps: int = 50):
        for _ in range(max_steps):
            if not self.step():
                break
        return self.bb.read()

Failure modes

• Non-termination: no agent signals “done.” Add a confidence threshold or hard step cap.
• State bloat: the board grows faster than you can summarize it; every agent read becomes a 100K-token LLM call. Add a summarizer agent that compresses old entries.
• Write conflicts: two agents write to the same key simultaneously. Either serialize writes (simplest) or use optimistic concurrency with version stamps.

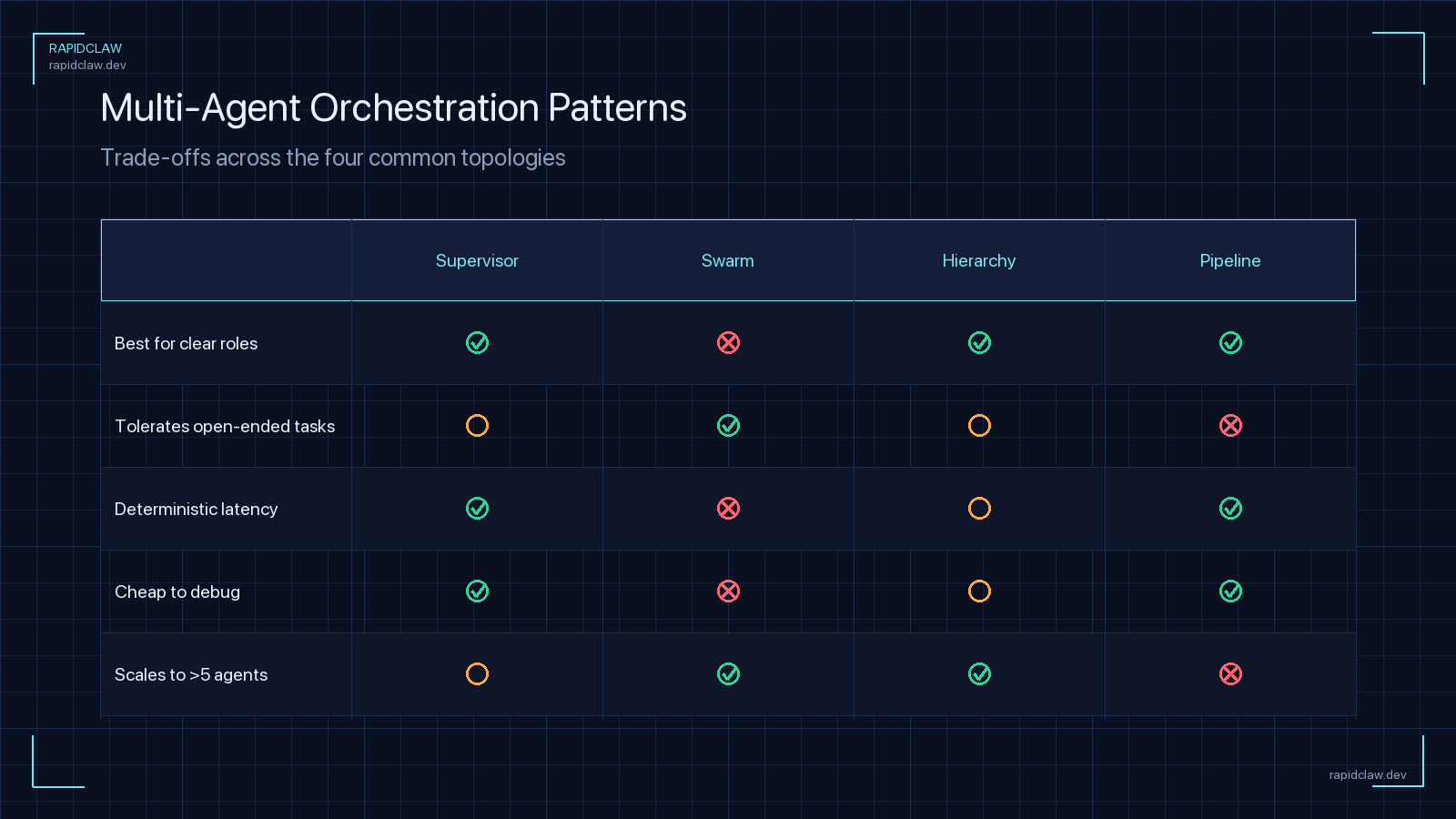

Pattern Decision Matrix

Most production systems aren’t a single pattern — they’re nested. A hierarchical manager dispatches sequential sub-pipelines; pub-sub drives an outer event loop with a blackboard inside each handler. Start with the simplest pattern that fits, and only add complexity when a specific pain point forces it.

Framework Support: CrewAI vs LangGraph vs AutoGen

Every major framework supports multi-agent workflows, but they lean into different patterns. See our full 2026 framework comparison for the complete feature matrix; here’s the pattern-support summary.

Cross-Cutting Challenges

These problems exist in every pattern. Your framework gives you primitives — the policies are your job.

State management

State lives in three places: the LLM context window, the orchestrator’s working memory, and durable storage. Keep them in sync or you get stale-read bugs that only surface under load. See our memory & state guide for durable patterns. Three rules that hold regardless of pattern:

• The orchestrator’s state is the source of truth, not any individual agent’s context window.
• Checkpoint after every agent step; resume from the last checkpoint on failure.
• Version every state update. Optimistic concurrency beats locks for LLM workloads — the retry cost is usually a rounding error next to the LLM call itself.

Error handling & retries

LLM calls fail for three distinct reasons, and each needs a different retry strategy:

• Transient (429, 503, network): exponential backoff with jitter. Retry the same call.
• Content-quality (malformed JSON, constraint violation): don’t blindly retry — re-prompt with the error message as feedback. The model fixes its own output 90% of the time.
• Fatal (auth, quota): don’t retry. Dead-letter the task and page a human.

Whatever you do, cap total retries per task. An agent in a retry loop at machine speed can burn through a month’s budget in an afternoon.

Deadlock & livelock

Multi-agent systems deadlock in ways single agents can’t. Three common traps:

• Circular delegation: Agent A asks B, B asks C, C asks A. Add a hop counter; drop requests over threshold N.
• Mutual waiting: two agents each wait for the other’s output. Use timeouts on every inter-agent request; never block indefinitely.
• Livelock (no progress): manager rejects every worker output, worker keeps re-submitting. Bound rounds; after M rounds, accept the best attempt.
